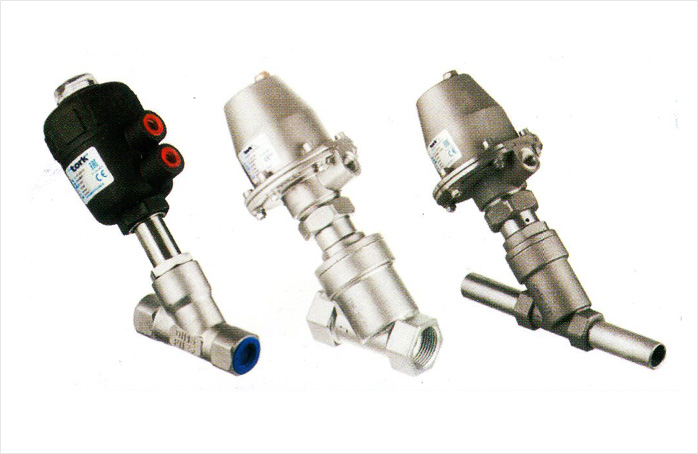

Pneumatic Angle Type Piston Valves



Pneumatic Piston Valve


Applications
:
Water, Air, Steam, Gas, Natural Gas, Chemical Fluids, Food, Sterilization, Water Treatment, alcohol, hydraulic liquids, salt solutions, acids, organic solvent etc.

Connections
:
1/8”………….2”  /  BSP, NPT / Screwed, Flanged, Welding

Pressure
:
0 bar……..40 bar

Seals
:
PTFE

Temperature
:
-10…180 °C



• AISI 316 Stainless Steel body and actuator
• High flow rate
• High Quality
• Compact
• Suitable for Vacuum application
• N.C. / N.O. position

Advantage of TORK Pneumatic Piston Valves : Less pressure drop than the globe valves

Short open-close time
• High flow rate
• Body and actuator in AISI 316 stainless steel, precision casting
• Flanged and welding connection available on request

Technical Features :

• Type : Pneumatic Actuated Angle Seat Piston Valve
• Connection : Screwed G (BSP), Welding, Flanged.
• Function : Normally Closed, Normally Open
• Working Temperature : -10˚C ... +180˚C
• Max. Operating Pressure : 16 bar, 40 bar
• Recommended
Control Air Supply : 4-6 bar
• Air Supply Connection : 1/4” G
• Body : All body AISI 316 stainless steel
• Sealing material : PTFE (opsiyonel Viton, EPDM)
• On request : NPT screwed connection
• Way : 2/2 way
• Heavy duty applications


Pneumatic Piston Valve



Tork Solenoid Valve



Air, Water, Gas, Steam, Natural Gas, LPG, Gasoline, Diesel Oil, Oil Hydraulic Oil, CO2, N2, H2, Acid, Hygienic Fluids
